AUT Pneumatic diaphragm Valves, 3/8 Orifice, 2-way
Product features
A reliable and cost-effective solution for high-purity chemical distribution systems| ●Using Fluid: Chemical solution,pure water,air,gas ●Fluid Temperature: 0~95℃ ●Pilot Air Pressure: 50~100 psi ●Forward Pressure(front to back): 0~85 psi ●Back Pressure(back to front): 0~85 psi ●Ambient temperature: 0~60℃ ●Pilot Air Actuation Port: #10-32 / M5 ●Cv value: 0.86 *Before use, please confirm whether the structure and material of the product, the liquid used, the environmental conditions, and other factors have any impact on the valve. |

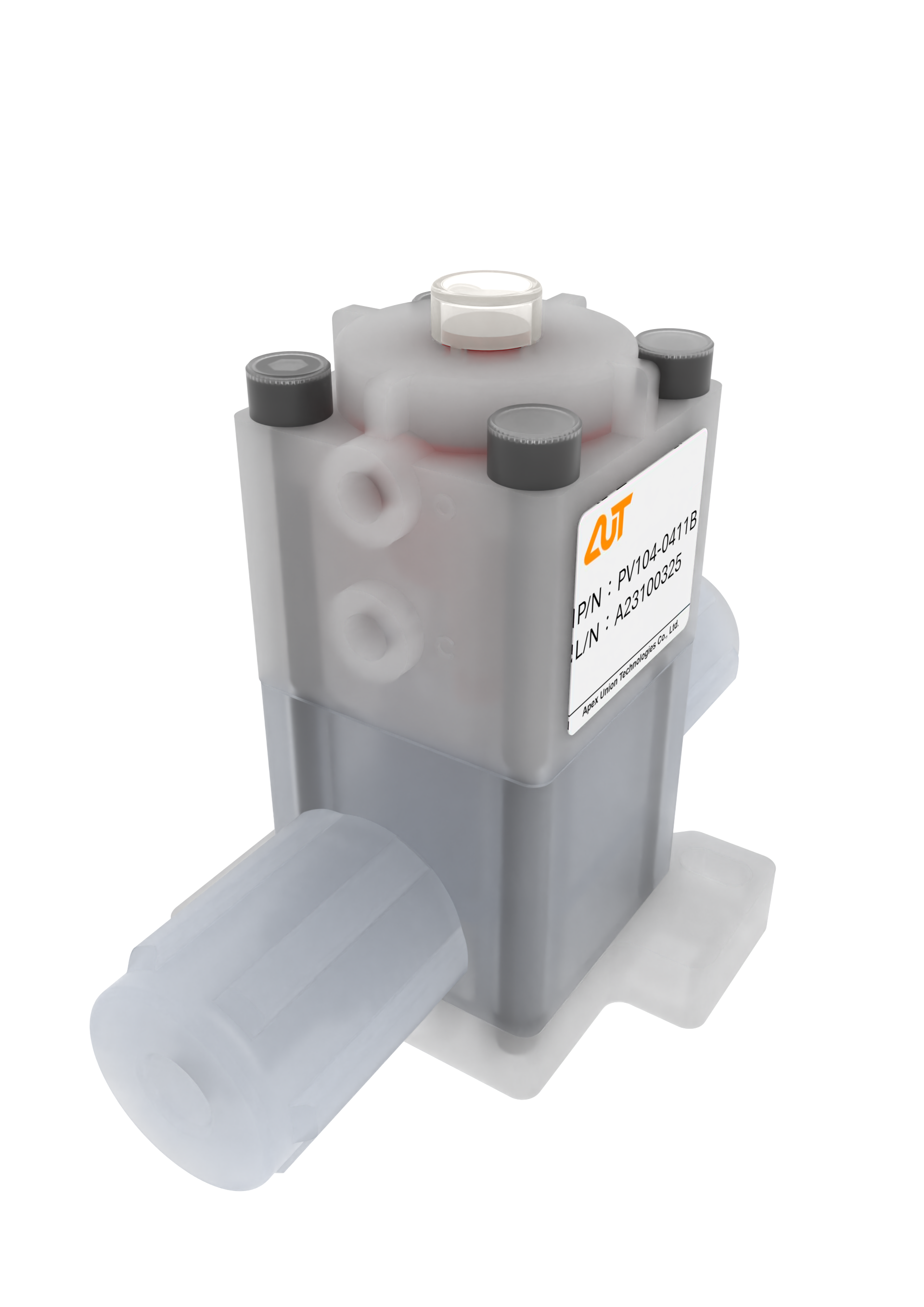

| PV104-0622-B / PV104-0611-B -Pneumatic Valve -1/4" Orifice Size 1st generation -3/8" Sleeve Insertion / 3/8" Parflare -B=DuPont 440HP PFA |
