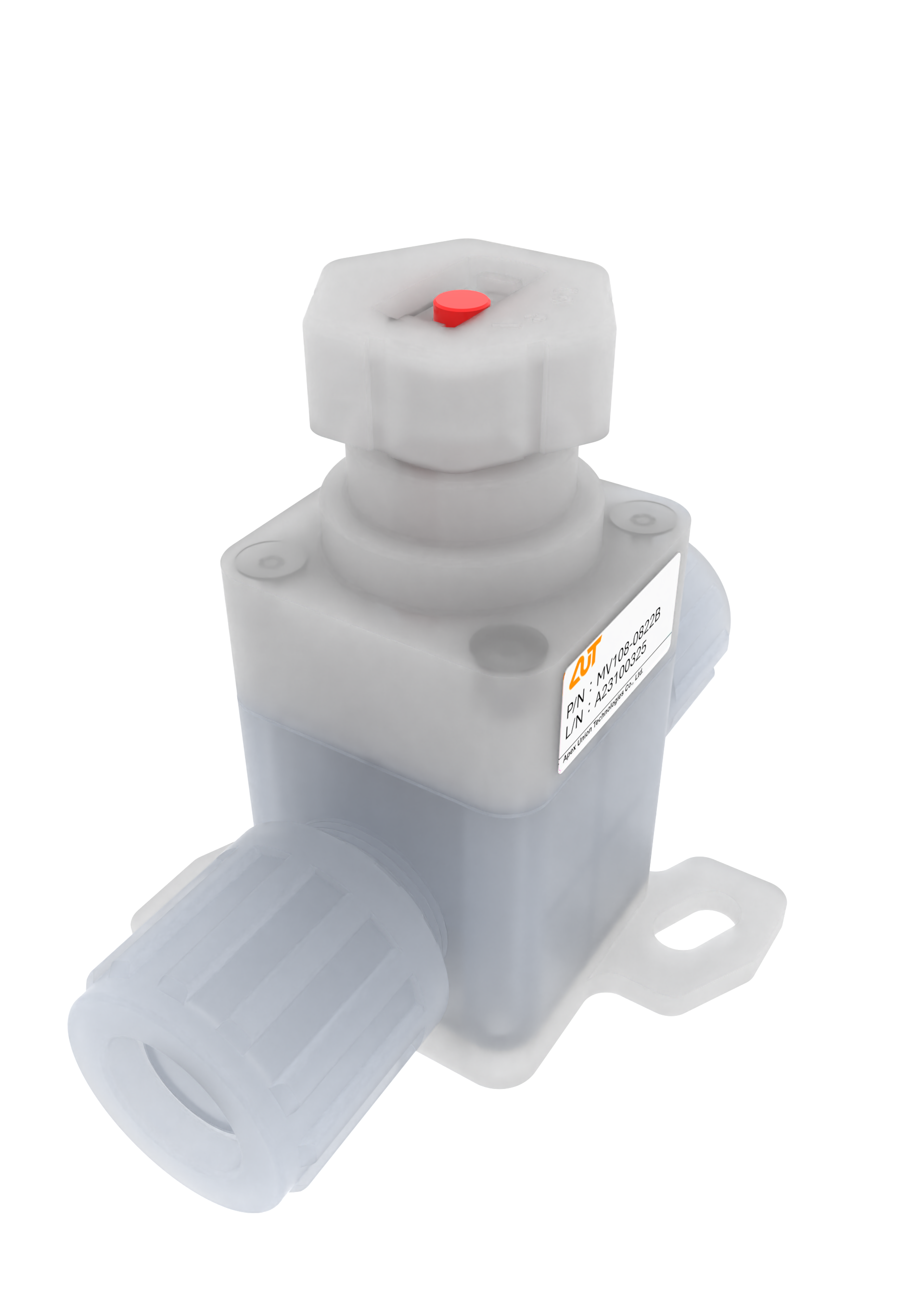

AUT Manual diaphragm Valves, 1/2 Orifice, 2-way
Product features
A reliable and cost-effective solution for high-purity chemical distribution systems| ●Using Fluid: Chemical solution,pure water,air,gas ●Fluid Temperature: 0~95℃ ●Handle Torque: Max 8 lbf-in ●Forward Pressure(front to back): 0~85 psi ●Back Pressure(back to front): 0~85 psi ●Ambient temperature: 0~60℃ ●Cv value: 3.08 *Before use, please confirm whether the structure and material of the product, the liquid used, the environmental conditions, and other factors have any impact on the valve. |

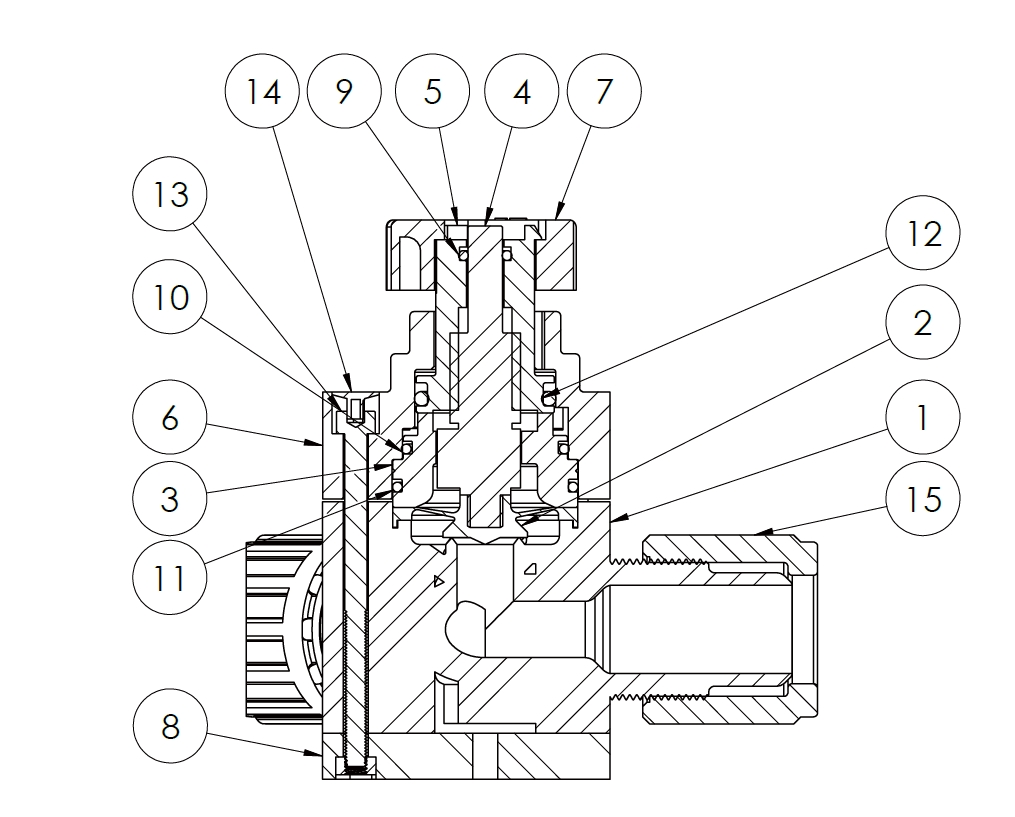

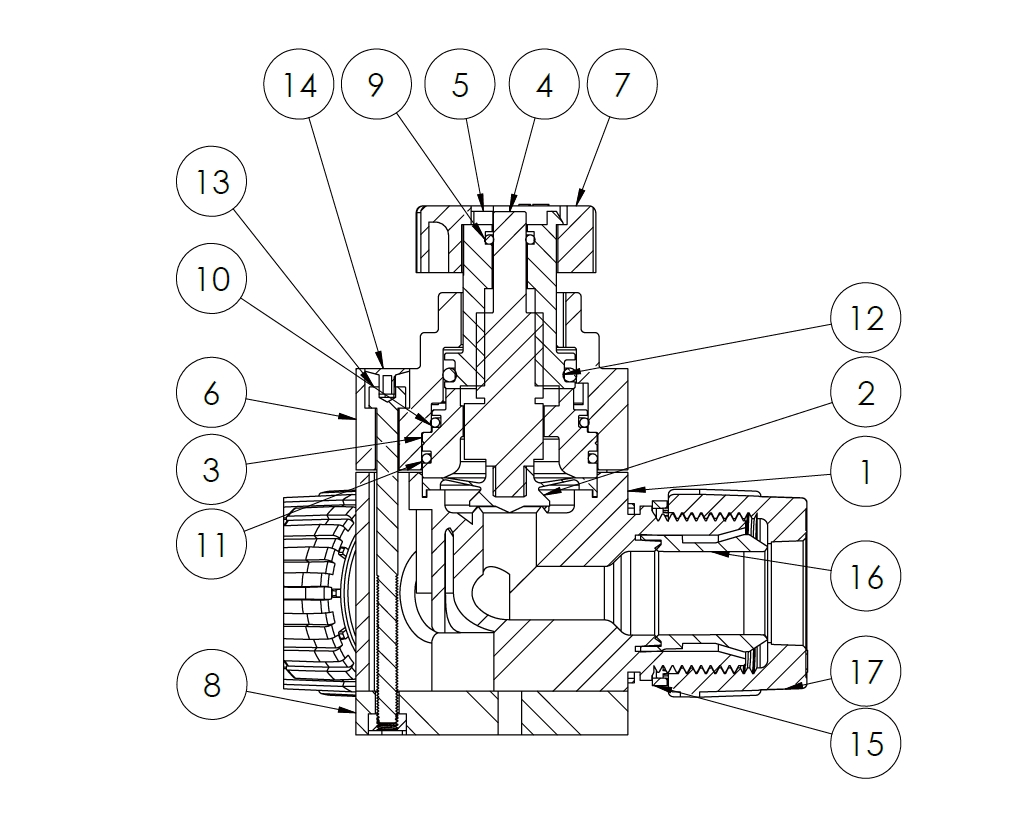

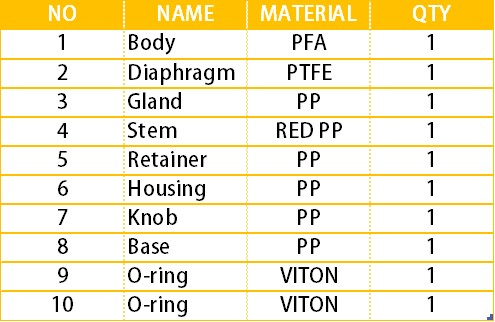

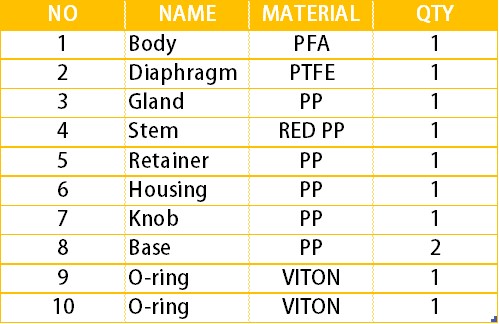

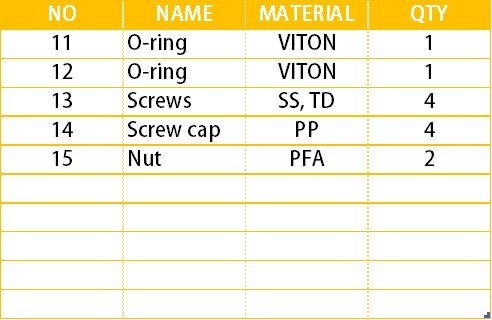

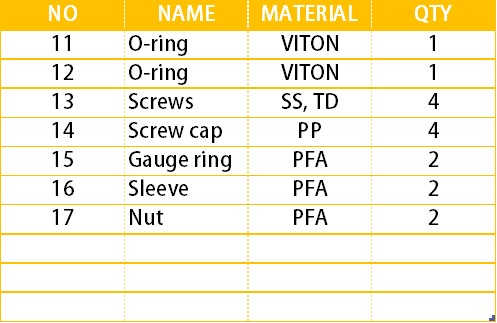

| MV108-0822-B / MV108-0811-B -Manual Valve -1/2" Orifice Size 1st generation -1/2" Sleeve Insertion / 1/2" Parflare -B=DuPont 440HP PFA |
